4.6.0 RDA Designer, How to automate Roles Permissions for Projects ("Where filter" field value)

Abbreviations, used in manual:

FW - Form Wizard

As part of the process of applying for updating Role's Project permissions, the user should follow these steps for each Project:

Note: each of mentioned API calls can be found in quilliup UI.

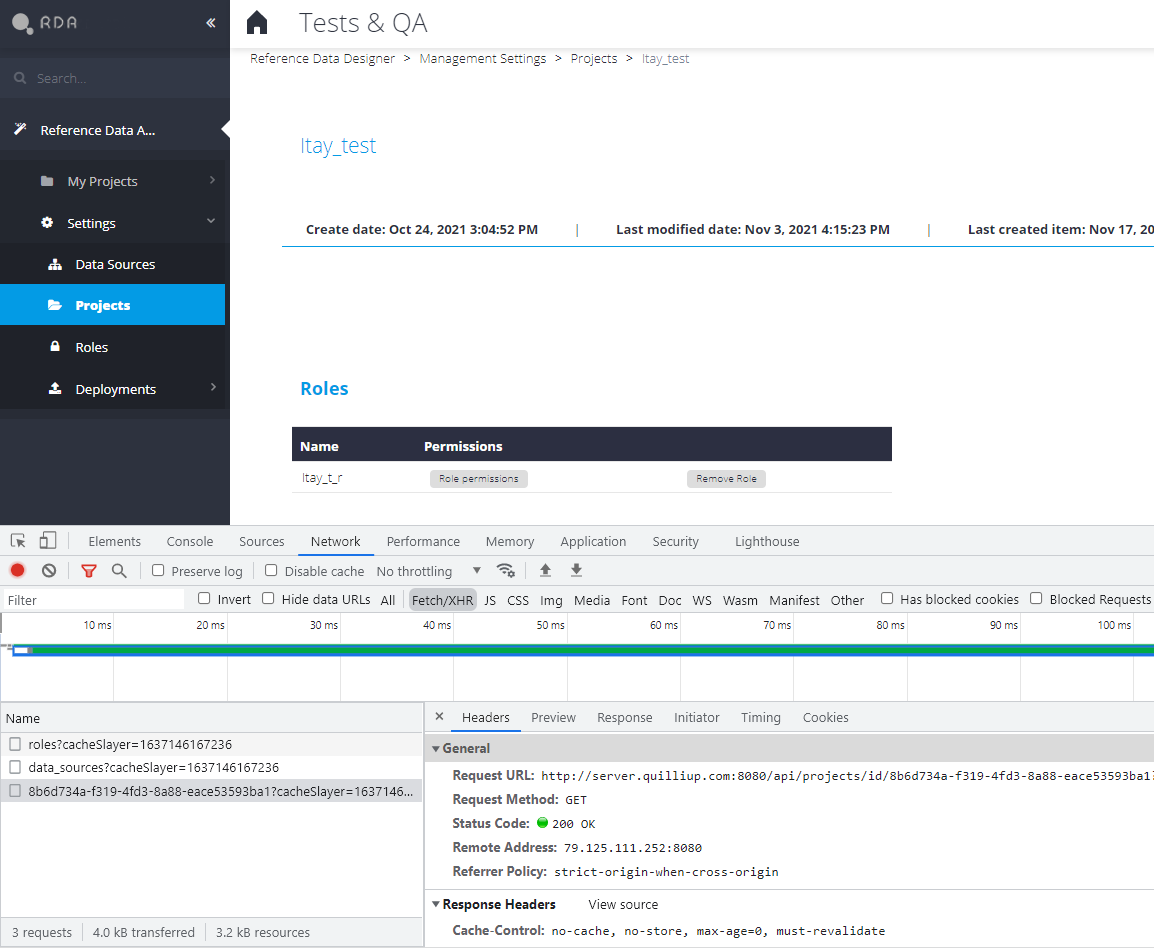

1. For specific Project (for example, for the Project with id = 8b6d734a-f319-4fd3-8a88-eace53593ba1) get Roles & Data Sources by implementing the next API:



   • Method – GET
   • Request URL - http://localhost:8080/api/projects/id/8b6d734a-f319-4fd3-8a88-eace53593ba1

   • Response:

     {
     "id": "8b6d734a-f319-4fd3-8a88-eace53593ba1",
     "name": "Itay_test",
     …
     "type": "projects",
     "assigned_datasources": [
     {
     "type": "ORACLE",
     "moduleId": "3",
     "host": "xxxx",
     "port": "1521",
     "databaseName": "ORCL",
     "user": "admin",
     "password": "xxxx",
     "searchSubFolders": false,
     "isMigration": false,
     "id": "33174582-6322-4eaf-aa6a-88f3a5555a8d",
     "name": "Itay_DS_Oracle",
     "createdDate": "Oct 24, 2021 3:07:51 PM",
     "modifiedDate": "Oct 24, 2021 3:07:51 PM",
     "createdBy": "itay",
     "modifiedBy": "itay",
     "versionId": "29e829f3-e454-4b46-b066-0a9c09a7ba72",
     "enabledLogging": "false"
     }],
     "assigned_roles": [
     {
     "description": "Test role for itay's test project",
     "moduleId": "3",
     "lastLogin": "Nov 3, 2021 4:59:30 PM",
     "permissions": {
     "data_sources": {
     "primary": true,
     "create": true,
     "edit": true,
     "delete": true,
     "assign_project_to_datasources": true
     },
     "teams": {
     "primary": true,
     "create": true,
     "edit": true,
     "delete": true,
     "edit_team_and_assign_to_team": true
     },
     "project": {
     "primary": true,
     "create": true,
     "edit": true,
     "delete": true,
     "assign_datasource_to_project": true,
     "assign_role_to_project": true,
     "allow_add_text_search": true
     },
     "tags": {
     "primary": true,
     "create": true,
     "edit": true,
     "delete": true
     },
     "functions": {
     "primary": true,
     "create": true,
     "edit": true,
     "delete": true
     },
     "security": {
     "primary": true,
     "create_new_role": true,
     "edit_role_and_assign_to_role": true,
     "delete_role": true,
     "manage_project_role_permissions": true,
     "manage_default_project_permissions": true,
     "manage_global_permissions": true
     },
     "deploy": {
     "project_related_objects": true,
     "datasources": true,
     "projects": true,
     "roles": true,
     "teams": true,
     "tags": true,
     "primary": true
     },
     "import": {
     "primary": true},
     "editor": {
     "primary": false},
     "rdae": {
     "primary": false},
     "loginConfPath": "C:\Program Files\quilliup\webapps\ROOT\WEB-INF\classes\login.conf",
     "isDefault": false
     },
     "id": "b4b4aa3f-60fe-44d5-94d0-da33589e9e1a",
     "name": "Itay_t_r",
     "createdDate": "Oct 24, 2021 2:59:16 PM",
     "modifiedDate": "Nov 3, 2021 4:36:28 PM",
     "createdBy": "itay",
     "modifiedBy": "admin",
     "assigned_projects": [
     {
     "id": "8b6d734a-f319-4fd3-8a88-eace53593ba1",
     "name": "Itay_test",
     "createdDate": "Oct 24, 2021 3:04:52 PM",
     "modifiedDate": "Nov 3, 2021 4:15:23 PM",
     "createdBy": "itay",
     "modifiedBy": "admin",
     "moduleId": "3",
     "lastCreatedObjectDate": "Nov 3, 2021 2:11:29 PM",
     "lastUpdatedObjectDate": "Nov 3, 2021 4:27:32 PM",
     "description": "",
     "testsView": "listView",
     "type": "projects"
     }
     ],
     }
     ],
     "groupTagName": ""
     }

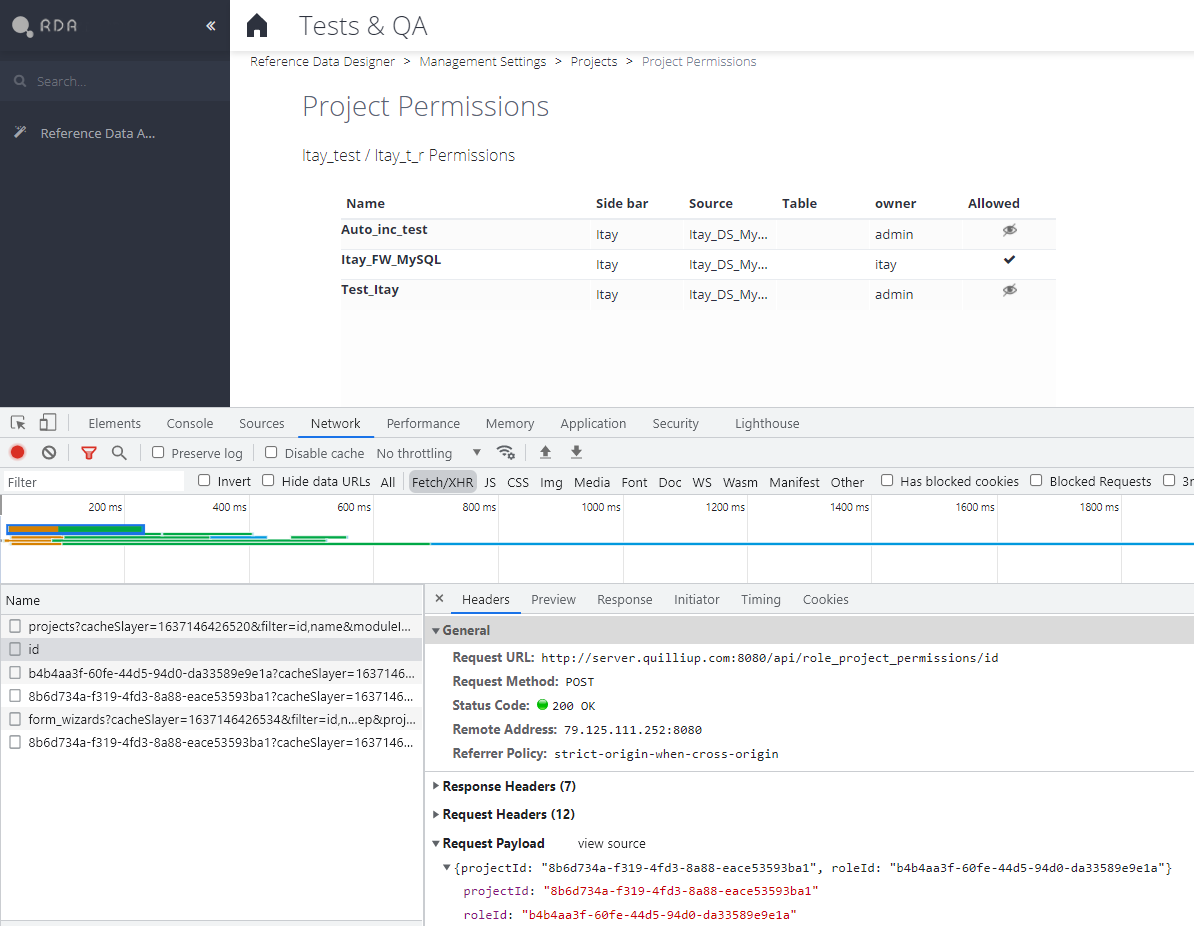

2. For each Role id (Role id's can be found in the array "assigned_roles", returned in response of previous API call, described in Step 1 - How to Deploy-Import by API) following API call should be implemented in order to receive current Role's Project permissions:
   • Method – POST
   • Request URL - http://localhost:8080/api/role_project_permissions/id

   • Body:

     {
     "projectId": "8b6d734a-f319-4fd3-8a88-eace53593ba1",
     "roleId": "b4b4aa3f-60fe-44d5-94d0-da33589e9e1a"
     }

   • Response:

     {
     "id": "54be6d95-650f-48f9-b665-2970fd6b5b40",
     "projectId": "8b6d734a-f319-4fd3-8a88-eace53593ba1",
     "roleId": "b4b4aa3f-60fe-44d5-94d0-da33589e9e1a",
     "relId": "908176d7-9296-4e3b-82a0-d8a45461258c",
     …
     "assigned_datasources": [
     {
     "type": "ORACLE",
     "moduleId": "3",
     …
     },
     {
     "type": "MySQL",
     …}
     ],
     "permissions": {
     "formSecurity": {
     "28a2a1a7-89d0-43f2-b93c-b3a0592b7603": {
     "hidden_grid_columns": [],
     "where_filter": "",
     "view_only_columns": [],
     "hidden_form_columns": [],
     },
     "9d558b98-fb4c-4c59-b65a-5a9aeb09d083": {
     "hidden_grid_columns": [],
     "where_filter": "product = 'RDA'",
     "view_only_columns": [],
     "hidden_form_columns": [],
     "allow_view": true,
     "allow_edit": true,
     "allow_add": true}}}}

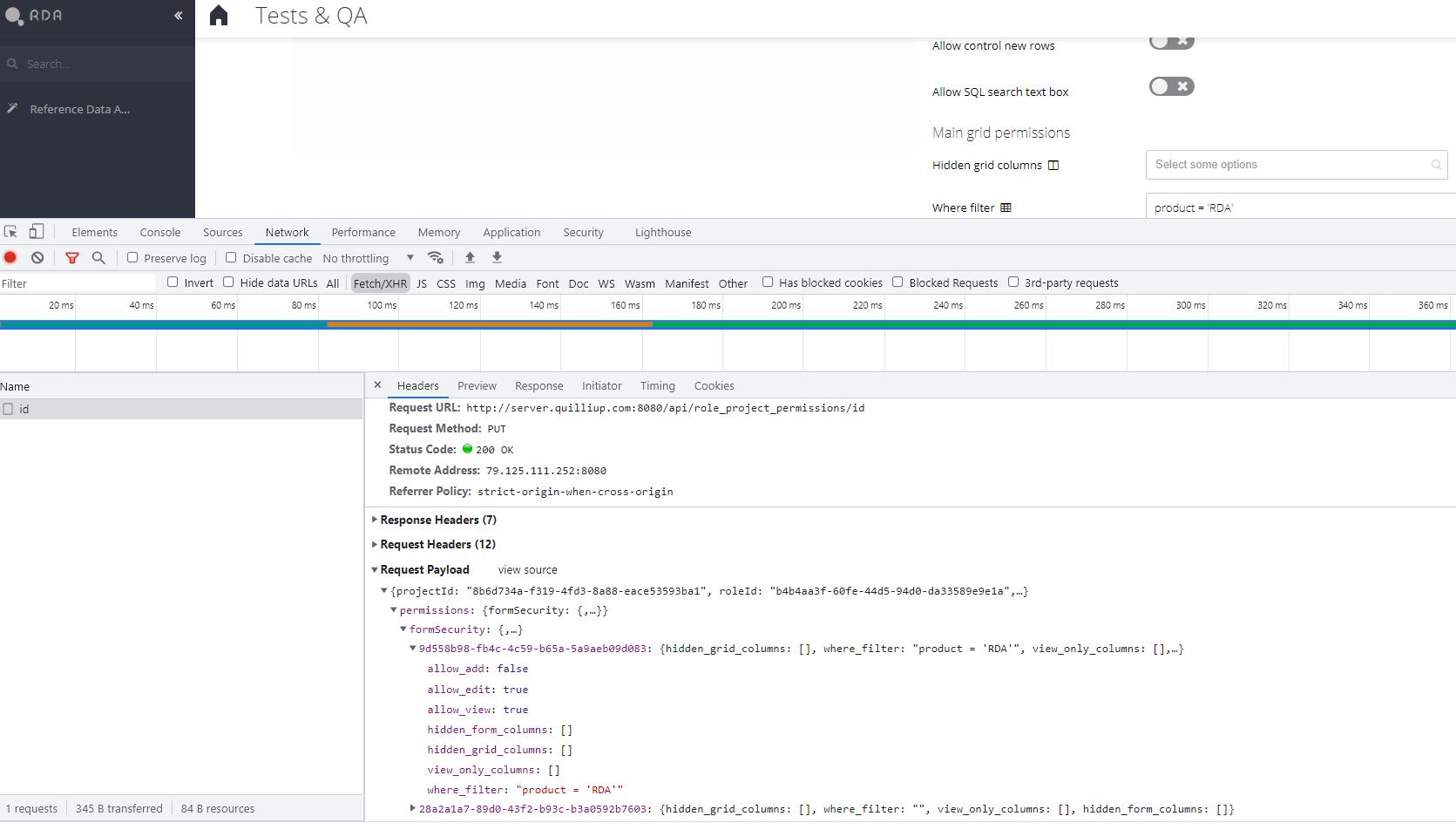

3. In order to update the “Where filter” field value for each FW Role's Project permissions:
   1. in Response, returned from API call under "permissions -> formSecurity"
   2. for object value for each id key (for example,  "28a2a1a7-89d0-43f2-b93c-b3a0592b7603") make required changes
   3. use updated "permissions -> formSecurity" object as part of Body, required for the API call that will updated specific Role's Project permissions:

•
  • Method – PUT
  • Request URL - http://localhost:8080/api/role_project_permissions/id

  • Body:

    {
    "projectId": "8b6d734a-f319-4fd3-8a88-eace53593ba1",
    "roleId": "b4b4aa3f-60fe-44d5-94d0-da33589e9e1a"
    ,
    "permissions": {
    "formSecurity": {
    "28a2a1a7-89d0-43f2-b93c-b3a0592b7603": {
    "hidden_grid_columns": [],
    "where_filter": "",
    "view_only_columns": [],
    "hidden_form_columns": []
    },
    "9d558b98-fb4c-4c59-b65a-5a9aeb09d083": {
    "hidden_grid_columns": [],
    "where_filter": "product = 'RDA'",
    "view_only_columns": [],
    "hidden_form_columns": [],
    "allow_view": true,
    "allow_edit": true,
    "allow_add": true
    }
    }
    }
    }
