3.2.5 QG, Command line Script

Abbreviations, used in manual:

QG - Quality Gates

EF - Execution Flow

This manual will guide you on how to create a Script of type Command line.

This feature allows Users to interact with a computer or operating system by typing commands into quilliup's UI, similar to opening a terminal/CMD on your computer.

In this type of Script, almost all the CMD commands can be implemented.



Follow the next steps:

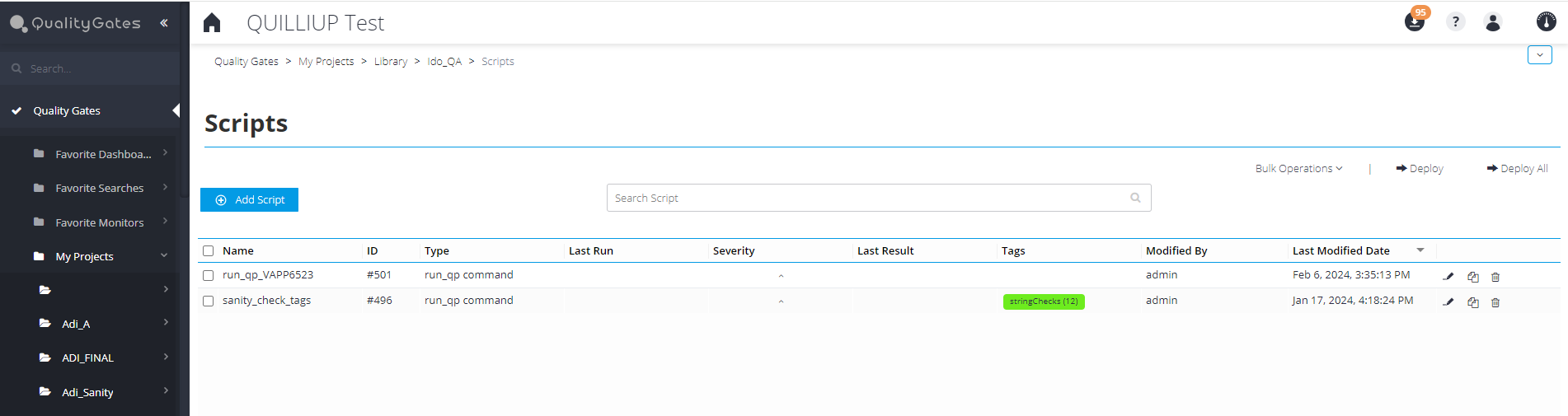

1. In the QG module, in the left side menu, under specific Project, go to the “Scripts” component:

Click “Add Script” button:

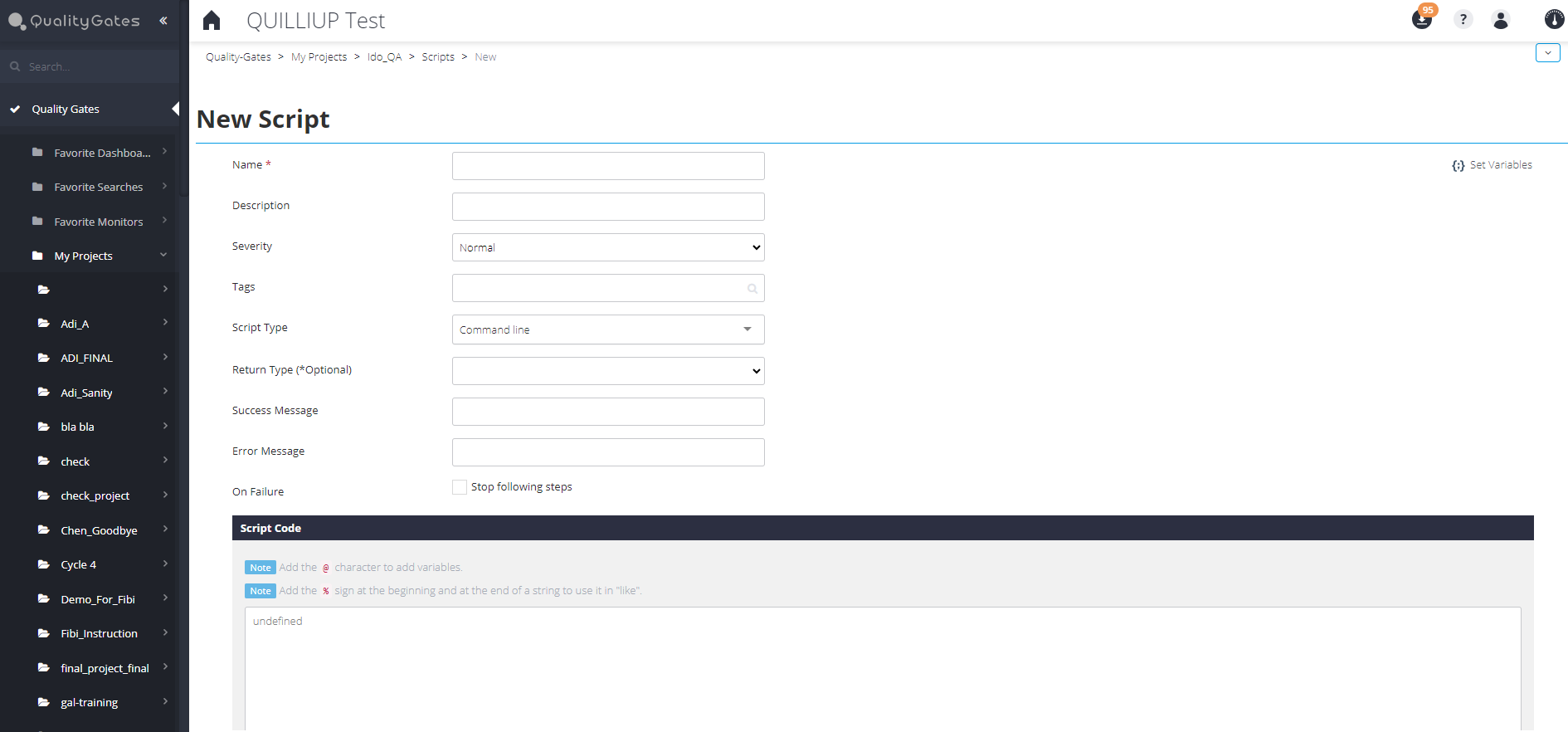

 2. Fill in all required fields - See details in manual Quality Gates, Scripts:

• Name - Script`s name.
• Description - Describe the Script purpose.

• Severity - The impact level of a script failure

• Tags - Variable can be related to appropriate Tag(s).

• Script Type - In our case we'll choose "Command Line":

• Return type (*Optional) - chose "Success" or "Failure":
• Success Message - This value will be returned in case of successful Script termination.
• Error Message - This value will be returned in case of the Script's failure.

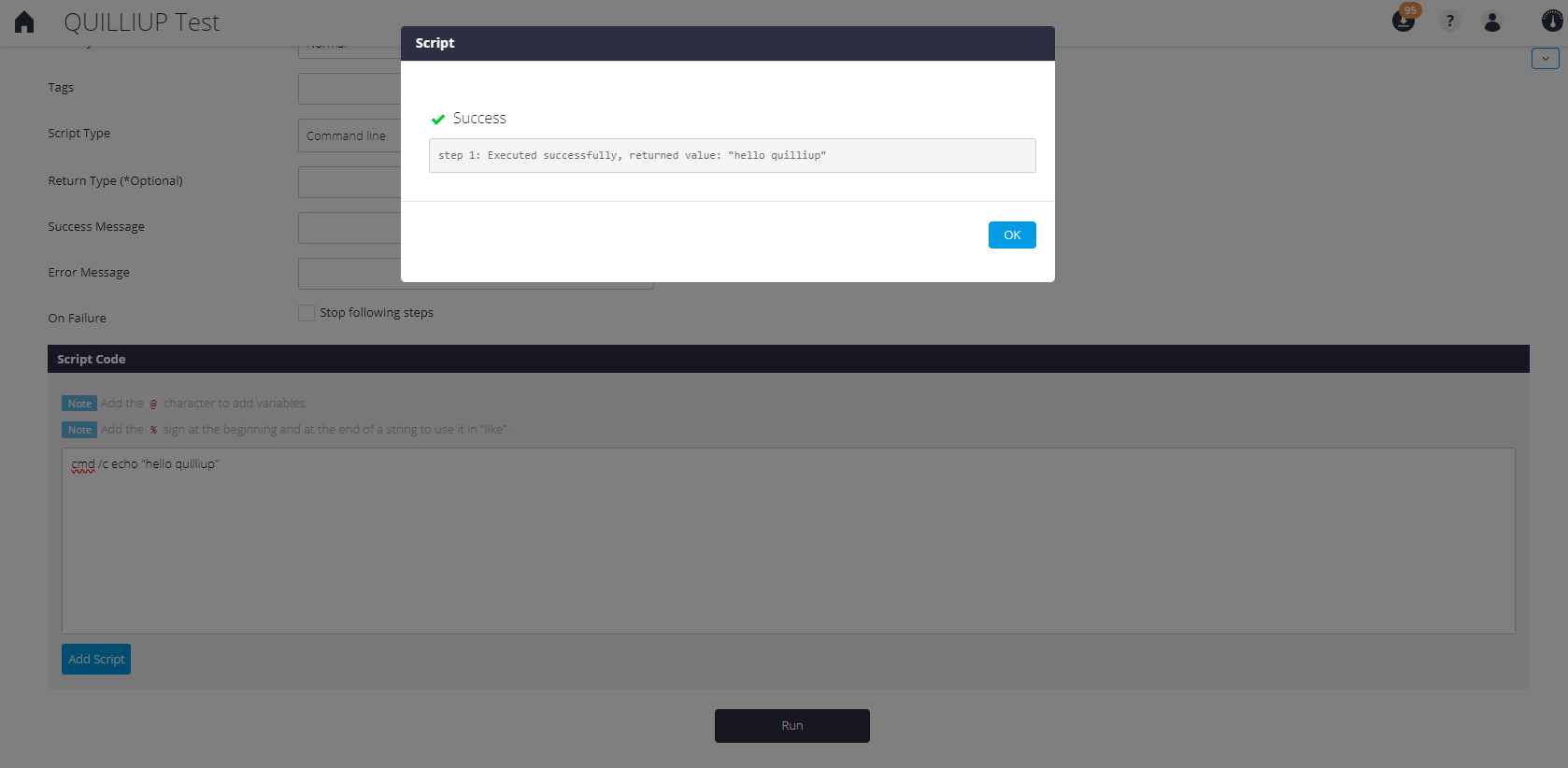

In the "Script code" field, enter the Command line script, for example:

cmd /c echo "hello quilliup"

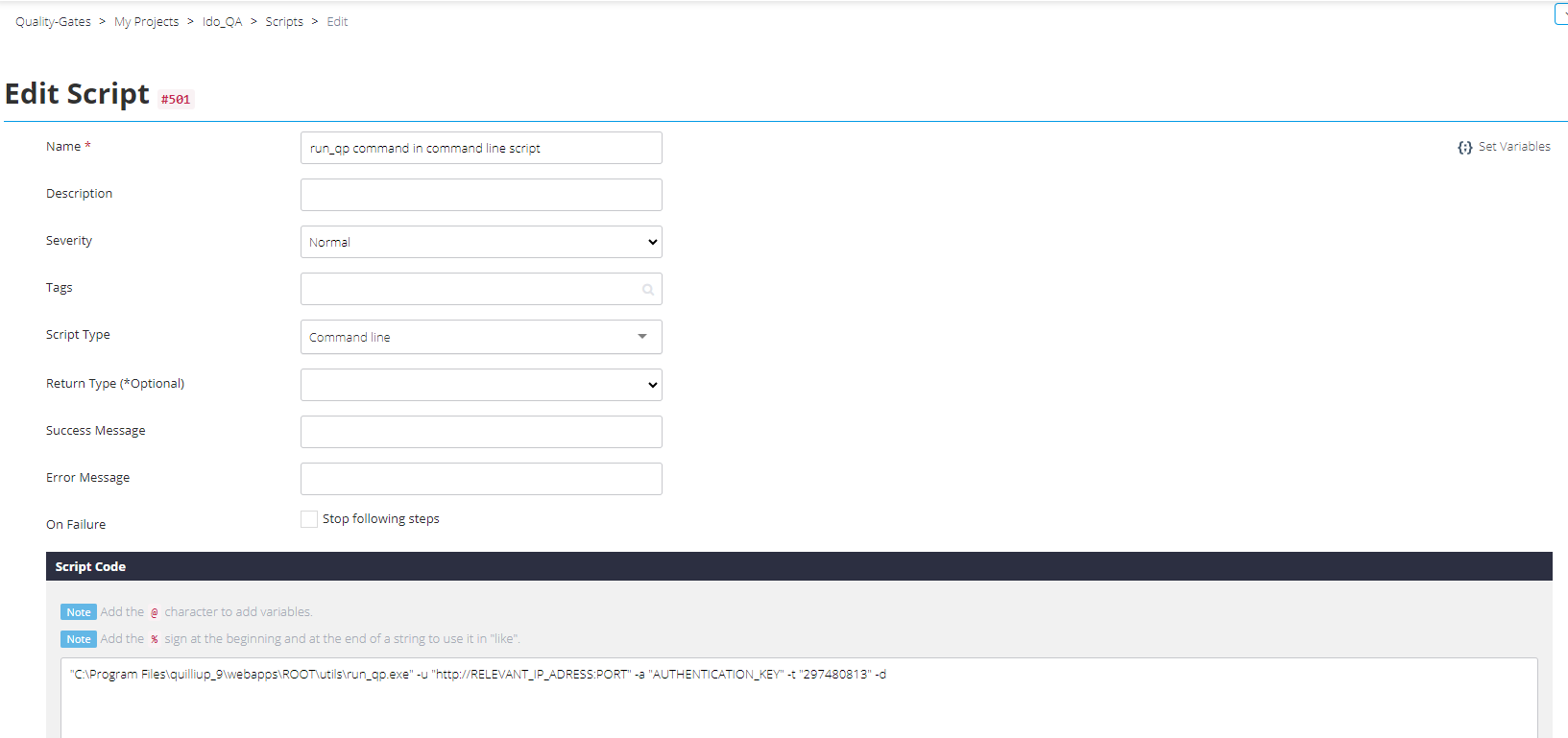

In addition, the Command line Script type allows to implement "run_qp" commands. For example:

Please refer to the manual below for more details on remotely triggering QG module entities (EFs, Tests, etc.): command line execution guide
