3.2.8 QG, SQL Query Script type

Abbreviations, used in manual:

QG - Quality Gates

This manual will guide you on how to create a Script of type "SQL Query".

Follow the next steps:

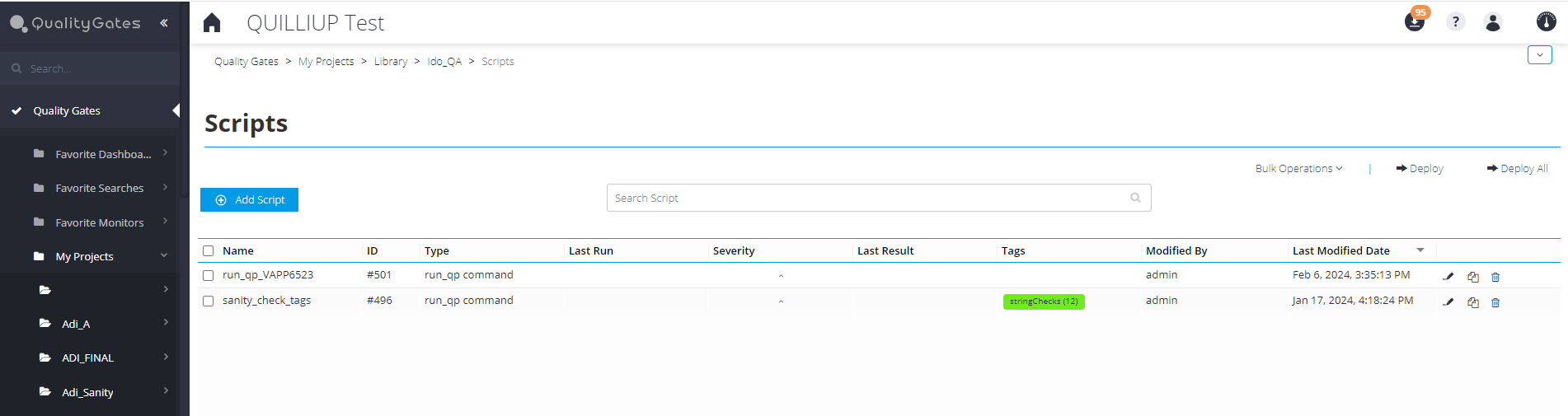

1. In the QG module, in the left side menu, under specific Project, go to the “Scripts” component:

Click “Add Script” button:

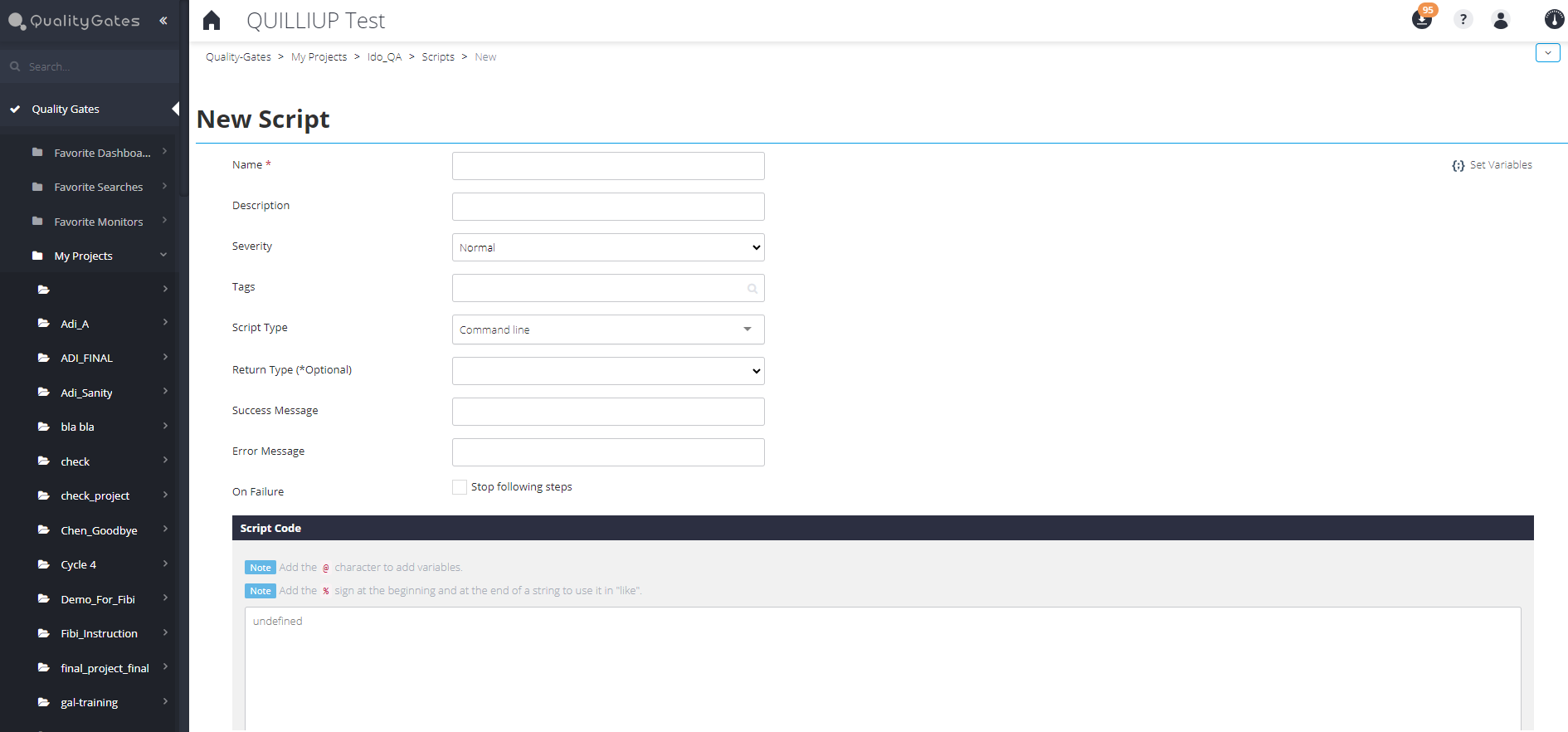

 2. Fill in all required fields - See details in manual Quality Gates, Scripts:

• Name - Script`s name.
• Description - Describe the Script purpose.

• Severity - The impact level of a script failure

• Tags - Variable can be related to appropriate Tag(s).

• Script Type - In our case we'll choose "SQL Query":

• Data Source Name - select a Data Source from the list.



• Return type (*Optional) - chose "Success" or "Failure".
• Success Message - This value will be returned in case of successful Script termination.
• Error Message - This value will be returned in case of the Script's failure.

Script Code - insert required SQL query. If the Return Type is defined as Success/Failure, ensure the script's result corresponds to a true or false condition, along with the return value.

For example: The result of the query  below is the number 65482174.

select * from income where income = 30

There are 4 different cases:

1. Define Success as the Return Type and 65482174 as the Return Value. Result of the Script will be Success:

2. Define Success as the Return Type and 65482170 as the Return Value. Result of the Script Will be Failure:

3. Define Failure as the Return Type and 65482174 as the Return Value. Result of the Script will be Failure:

4. Define Failure as the Return Type and 65482170 as the Return Value. Result of the Script will be Success:

{;} Set Variables - the value of a Variable(s) that is already in use within that specific Script, can be modified:
