3.2.6 QG, run_qp command Script type

Abbreviations, used in manual:

QG - Quality Gates

EF - Execution Flow

This manual will guide you on how to create a Script of type "run_qp command".

run_qp commands (run_qp.exe for Windows & run_qp.sh for Linux) allow to run quilliup entities (for example: EFs, Tests, ...)

Follow the next steps:

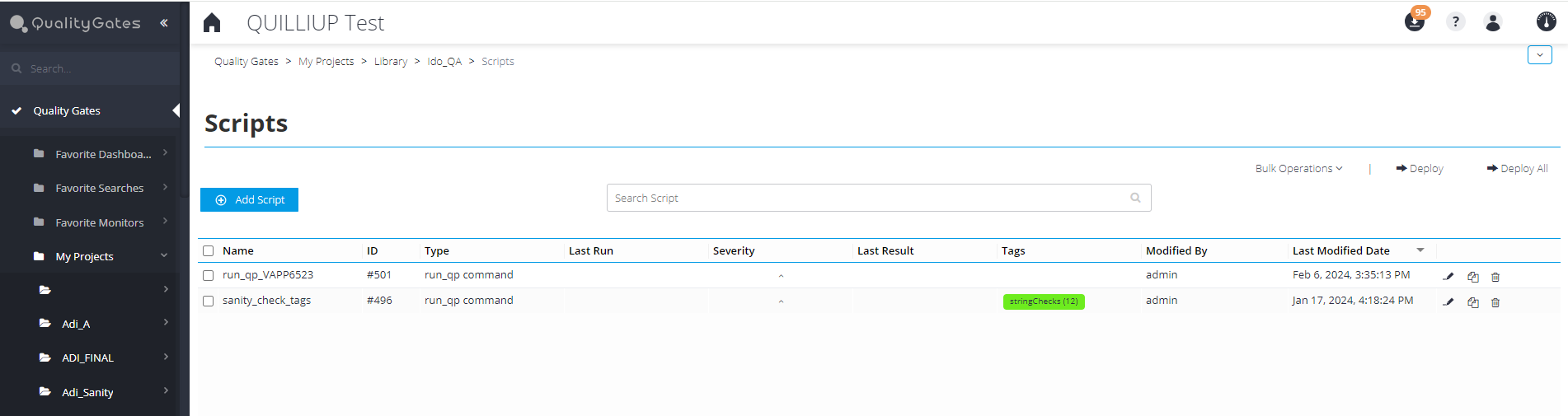

1. In the QG module, in the left side menu, under specific Project, go to the “Scripts” component:

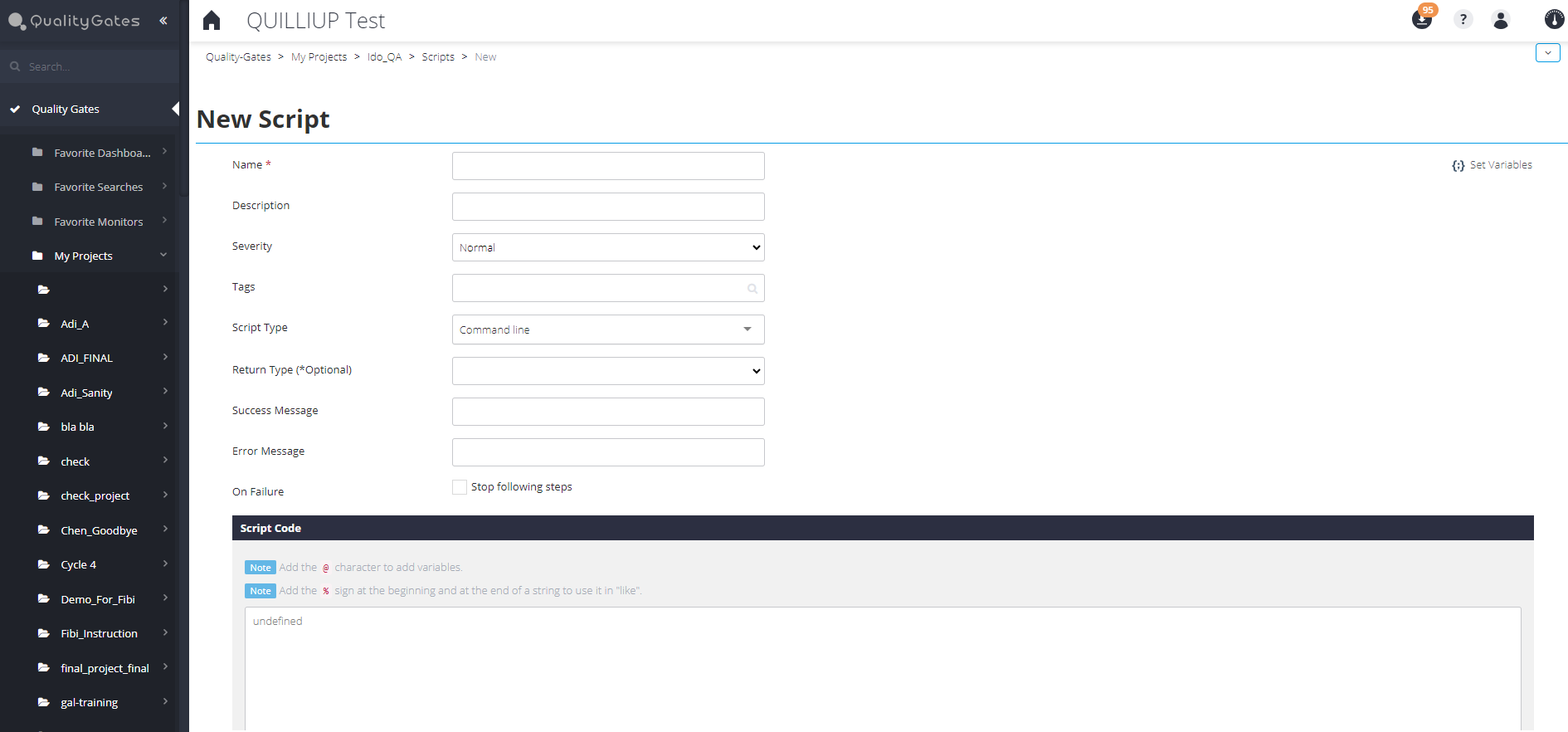

Click “Add Script” button:

 2. Fill in all required fields - See details in manual Quality Gates, Scripts:

• Name - Script`s name.
• Description - Describe the Script purpose.

• Severity - The impact level of a script failure

• Tags - Variable can be related to appropriate Tag(s).

• Script Type - In our case we'll choose "run_qp_command":

• Return type (*Optional) - chose "Success" or "Failure":
• Success Message - This value will be returned in case of successful Script termination.
• Error Message - This value will be returned in case of the Script's failure.

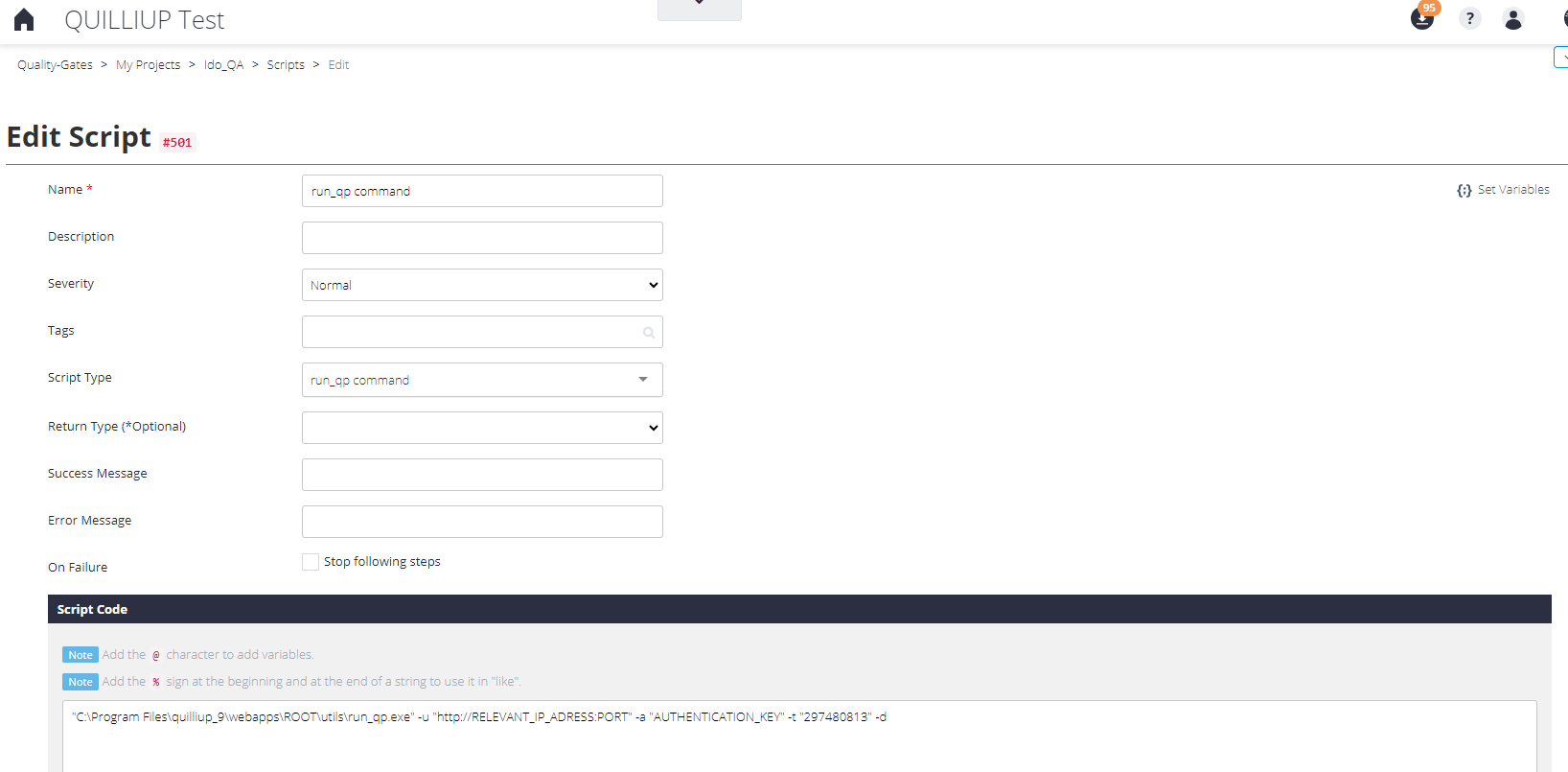

"run_qp command" Script type allows to trigger QG module's entities (EFs, Tests, etc.).

For example:


C:\Program Files\quilliup_9\webapps\ROOT\utils\run_qp.exe -u "http://RELEVANT_IP_ADRESS:PORT" -a "AUTHENTICATION_KEY" -t "297480813" -d



Please refer to the manual below for more details on remotely triggering QG module entities (EFs, Tests, etc.):

Manual for version 2.6.3.4 to version 3.0.0-  command line execution guide

Manual for version 3.0.0 and above- quilliup command line execution guide (from 3.0.0 and above)
